A flashing red light on a gas water heater sends most people straight to panic, and about half the time nothing is wrong. On the single-light gas control valves that Rheem, Ruud, A.O. Smith, and State all use, the one diagnostic LED is red, and one slow red flash every three seconds is the normal heartbeat: pilot lit, thermopile healthy, valve happy. The trouble only starts when that red light throws bursts of two, four, five, or seven quick flashes. Each count is a specific message from the valve. Before you touch a wrench or a reset, the job is to figure out which kind of valve you have and then count the flashes correctly, because those two facts decide everything that follows.
Key takeaways
- On a red-only valve, one red flash every 3 seconds is NORMAL. Count the burst before you assume a fault.
- On green-and-red controls, green is normal and any red flash is an active fault.
- Common red-flash map: 2 = low thermopile voltage, 4 = high-temp shutdown, 5 = sensor, 7 = gas valve.
- A separate BLUE lockout is the flammable-vapor sensor, not a gas-valve code. Ventilate before you reset.
- Bradford White uses a different count map. Always confirm against the chart on the burner door.
First, decide what kind of light you are looking at
Two families of gas control valve are on the wall in American homes, and the red light means something different on each. The older and still most common design has a single diagnostic LED that is red. On that valve, red is the only color it can show, so red by itself is not a verdict. The heartbeat, one red flash every three seconds, is normal. Faults are longer bursts. This is the design you will find on most Rheem, Ruud, A.O. Smith, and State gas tanks.
The newer design uses more than one color. Bradford White Eco-Defender controls and Rheem Guardian boards, for example, light green for normal or standby, sometimes yellow for a thermopile warning, and red only when there is an actual fault. On these, a red flash really does mean something is wrong, because green is the color the valve shows when it is content. A few of these also run a blue track, which is a separate lockout tied to the flammable-vapor sensor and has nothing to do with the gas-valve codes. So before counting anything, note whether your valve is red-only or multi-color. It changes how you read the very first flash.
- Look at the valve: does it have one red light, or a light that can show green and red?
- Red-only valve? One flash per 3 seconds is normal. Only 2+ flashes is a fault.
- Green-and-red control? Green is normal. Any red flash is a fault to diagnose.
- Seeing BLUE, not red? That is the flammable-vapor lockout track, handled separately.
- Find the flash-code chart printed on the burner door or in the owner's manual for your exact model.
Quick answer
On the single-LED red gas valves used by Rheem, Ruud, A.O. Smith, and State, one red flash every three seconds is normal operation. A repeating burst of quick flashes is a fault code, and the count tells you which part: two flashes is low thermopile voltage, four is a high-temperature shutdown, five is a sensor fault, and seven is a gas control valve failure. On green-and-red controls like Bradford White Eco-Defender, green is normal and any red flash is a fault, but the count meanings differ, so read that heater's own chart. A blue light is a separate flammable-vapor lockout, not a gas-valve code.
Count the flashes without fooling yourself
Miscounting is the most common way people replace the wrong part. The flashes are quick and the pause between bursts is long, so it is easy to count a pause as a flash or to drift off across cycles. Work it slowly and get two bursts to agree before you trust the number.
The one-flash trap
One red flash on a red-only valve is the heater telling you it is fine. If you count exactly one and still have no hot water, the problem is elsewhere: a thermostat setting, a tripped breaker on a power-vent model, or a plumbing crossover. Only two or more flashes in a repeating burst is an actual code to chase.

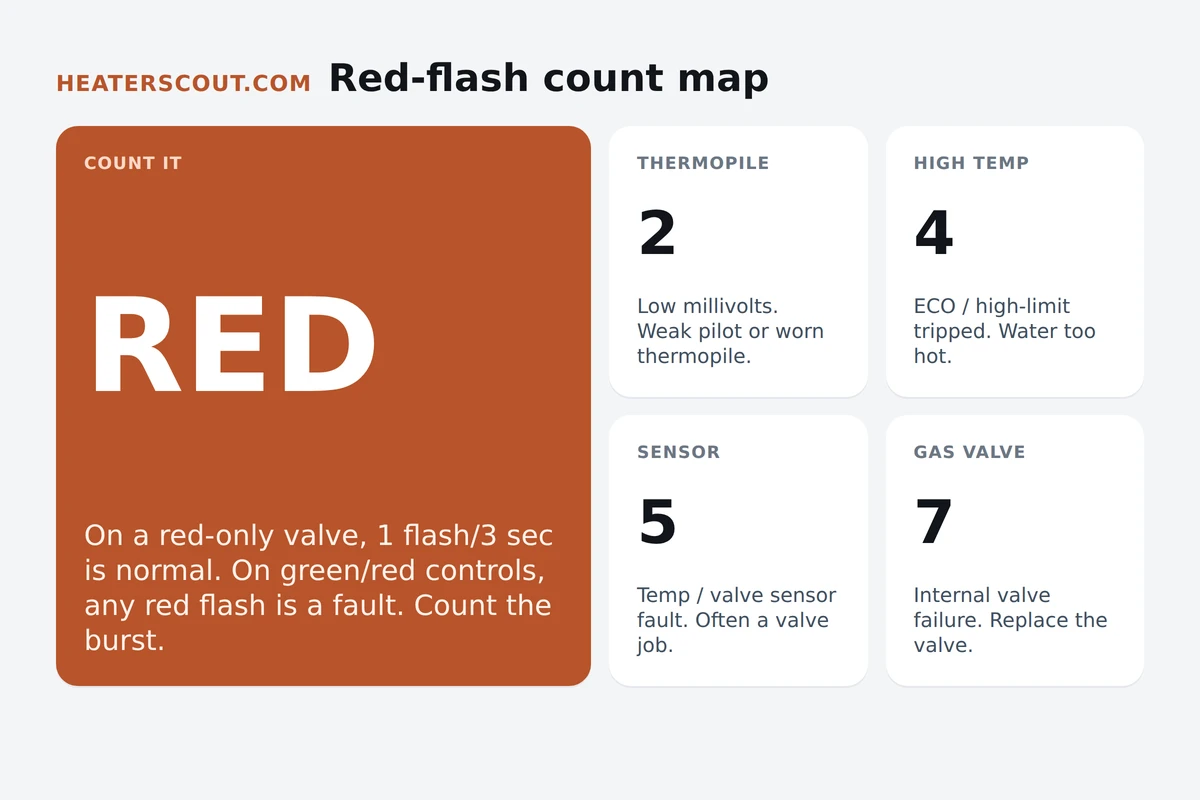

The cross-brand red-flash map
Here is the core of it. The counts below hold across the Honeywell and Robertshaw family of gas control valves, which covers most Rheem, Ruud, A.O. Smith, and State tanks. Bradford White is the notable exception and gets its own note under the table. Counts above the normal heartbeat are faults, and each one routes to a specific part.
| Flash count | What the valve is reporting | Most likely cause | Fix difficulty |
|---|---|---|---|
| 1 flash / 3 sec | Normal operation (red-only valve) | No fault. Pilot lit, thermopile healthy | None needed |
| 2 flashes | Low thermopile voltage | Weak pilot flame, loose lead, or worn thermopile | DIY-friendly, cheap |
| 4 flashes | High-temperature shutdown (ECO) | Setpoint too high, sediment, or a drifting sensor | Some DIY, then a pro |
| 5 flashes | Temperature / valve sensor fault | Sensor is integral to the gas valve | Usually a valve job |
| 7 flashes | Gas control valve failure | Internal valve fault, replace the valve | Call a pro |
| Blue light lockout | Flammable-vapor sensor (FVIR) tripped | Combustible fumes near the heater | Ventilate first, then reset |
On a Bradford White the green light is normal, and the counts do not line up with the table above. On its ICON and Eco-Defender controls, two flashes is a weak pilot, four is high tank temperature, five is a gas-valve sensor fault, six is a chamber-door sensor, nine is a detected tank leak, and ten is insufficient combustion air. A nine or a red flash on a Bradford White is not a minor thing. So on that brand, count the flashes and then read the chart on the burner door rather than assuming the Rheem or A.O. Smith meaning.
Reset once, not repeatedly
Do not keep resetting a four, five, or seven flash code to force the burner back on. Four is a real high-temperature trip, five and seven point at the valve, and a blue lockout means fumes are present. All of those are safety conditions. Reset once to see if it was a one-time event. If the same count returns, stop and diagnose the cause. Never jumper or bypass a sensor to run through a warning.
What each red-flash count actually is
Two flashes is low thermopile voltage. The thermopile is a bundle of thermocouples the pilot flame heats to make the small DC voltage that powers the gas valve. When the pilot is weak or the thermopile is tired, that voltage sags below the valve's holding threshold and the burner will not fire. It is the friendliest code on the list. Check for a strong blue pilot flame that wraps the thermopile tip, clean and reseat the leads, and if a meter reads low under load, swap the thermopile. The part usually runs twenty to fifty dollars and the job is an afternoon with hand tools.
Four flashes is a high-temperature shutdown. The valve sensed the water climbing past its high limit and cut the burner, the gas equivalent of an ECO tripping. The causes stack from free to expensive: a setpoint dialed toward the hot end, sediment on the tank bottom trapping heat over the burner, a temperature sensor drifting high, or a valve failing to shut the burner off. Back the dial to about 120 degrees and flush the tank before you ever suspect the valve. Most four-flash cases clear at that step and cost nothing but time.
Five flashes is a sensor fault: the valve cannot trust its own reading of the water temperature. On modern gas heaters that sensor is built into the gas control valve, so a genuine five-flash usually ends in a valve replacement rather than a separate sensor swap. Seven flashes is the valve itself reporting an internal fault, and it almost always means replacing the gas control valve assembly. Both are the codes where warranty matters most, because the valve is a covered part on most gas heaters for several years.

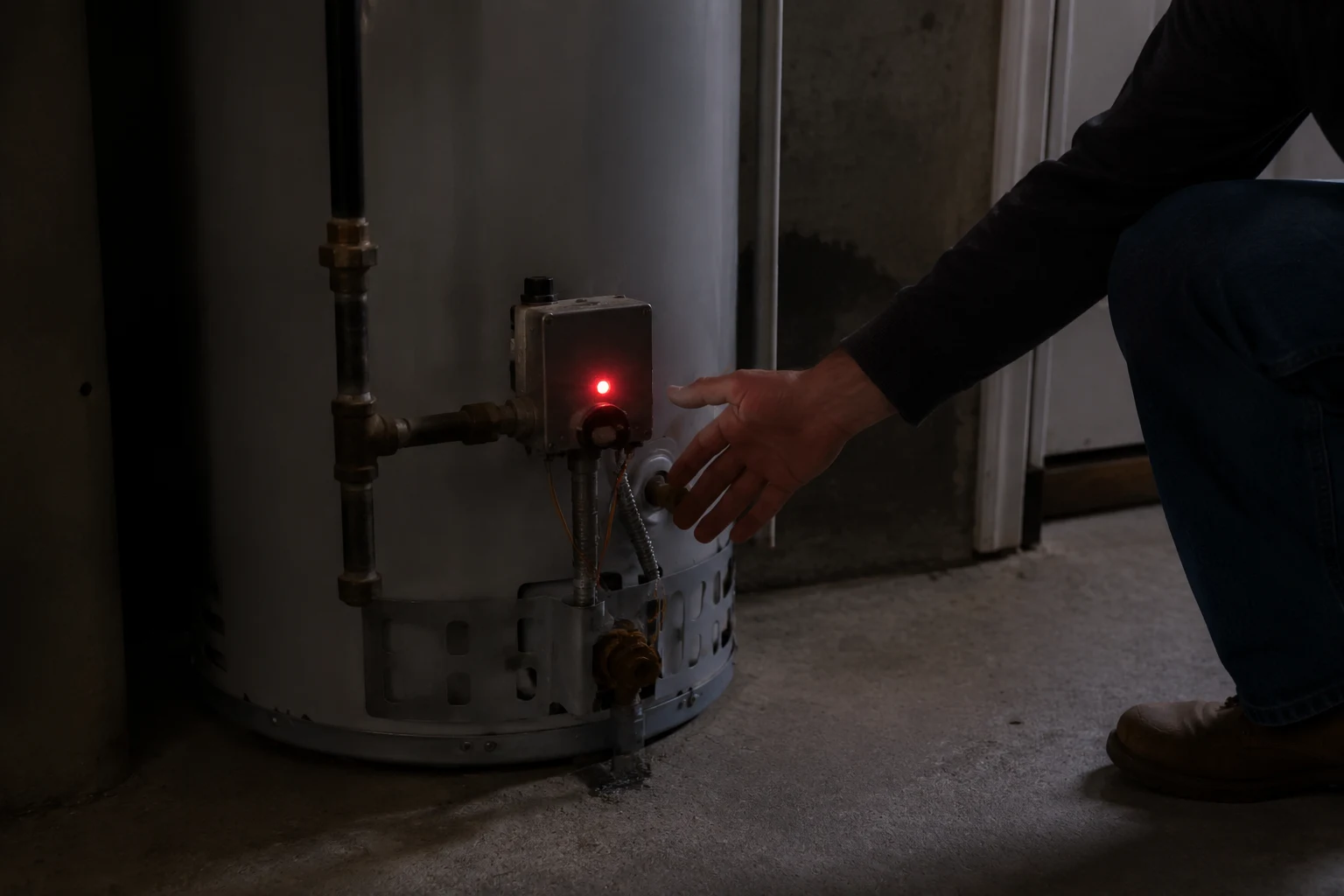

Gas control valve status light
The small diagnostic LED on the gas control valve at the base of a gas water heater. It reports the heater's state by flash count. On single-color red valves, one slow red flash every three seconds is normal and bursts of two or more quick flashes are fault codes. On multi-color controls, green is normal, yellow is a thermopile warning, red is an active fault, and blue is a separate flammable-vapor lockout. The Honeywell and Robertshaw valve family used by Rheem, Ruud, A.O. Smith, and State shares a common count map, while Bradford White assigns its own meanings, so the chart on the appliance always governs.
Reset it, and know where the DIY line sits
The soft reset is the same for most of these codes, and it is worth doing exactly once before you spend money. On a gas model, turn the gas control knob to OFF, wait three to five minutes for the valve and water to cool, then relight the pilot per the burner-door instructions and return the knob to its setting. On a power-vent or electronic model, cutting power at the switch or breaker for the same few minutes does the same thing. People go looking for a red ECO reset button and get frustrated when a gas valve does not have one. That physical red button lives on electric water heaters, behind the upper access panel. On a gas valve, the knob cycle is the reset.
Where you stop depends on the count. The two-flash thermopile job is squarely homeowner work: a screwdriver, a wrench, a multimeter, and a cheap part. The four-flash code starts as homeowner work, backing off the temperature and flushing sediment, and only becomes a pro job if it returns on a clean tank at a sane setting. Five and seven flashes are the valve, and replacing a gas control valve means draining the tank and disconnecting gas, which is where most people bring in a licensed plumber. The part runs roughly one hundred fifty to three hundred dollars, and installed it lands somewhere between two hundred fifty and six hundred or more depending on your market. Before any valve purchase, check the warranty against the rating label, because a covered valve turns a part-plus-labor bill into labor only.
Red versus blue, and why the color matters
The one crossover that sends people down the wrong path is confusing a red gas-valve code with a blue lockout. On a valve that can show blue, that color is not part of the flash-count chart. A blue light going into lockout means the flammable-vapor sensor tripped, which is the valve telling you it detected combustible fumes near the heater: gasoline, paint thinner, or solvent stored too close, or spilled nearby. That is not a valve fault, it is a hazard, and the fix is to ventilate the space and remove the source before you reset. Chasing the red thermopile or gas-valve steps for a blue lockout wastes time and misses a real safety problem.
So the whole read comes down to three questions in order. Is the light red-only or multi-color, which tells you whether a single flash is normal or a fault. What color is it right now, which separates the gas-valve track from the flammable-vapor track. And what is the count, which routes you to the part. Get those three straight and you go from a mystery blinking light to a specific part with a known price, and from there each fault has a clear next step, whether that is a fifty-dollar thermopile or a warranty call on the valve.
Frequently asked
What does a flashing red light on my water heater mean?
It depends on how the valve is built, and that is the part most guides skip. On the common single-LED gas control valves used across Rheem, Ruud, A.O. Smith, and State, the one diagnostic light is red, and one red flash every three seconds is normal operation, not a fault. On those valves the number of flashes in a burst is the code, so red is only bad when you count two or more. On newer multi-color controls, like Bradford White Eco-Defender or a Rheem Guardian board, green is the normal color and red means an active fault. So step one is to notice whether your valve has one red light or a green-and-red light. If it is green-and-red and you are seeing red, that is a fault. If it is red only, count the flashes before you decide anything is wrong.
How do I count the flashes on my water heater?
Kneel where you can see the small light on the gas control valve near the base of the tank, then watch two or three full cycles. A cycle is a quick burst of flashes followed by a long pause of about three seconds. Count only the fast flashes inside one burst and stop at the pause. Two quick flashes then a pause is a two. Four quick flashes then a pause is a four. Do not count across the pause and do not count the pause itself. Confirm you get the same number on the next burst, because real codes repeat identically. Write the count down before you touch anything, since a reset clears the light and you lose the code you were trying to read.
Is a flashing red light dangerous?
The flashing itself is the safety system reporting a condition, which is the opposite of dangerous. Whether the condition behind it is serious depends on the count. A two-flash thermopile code just means the burner will not fire until you restore voltage, which is a nuisance, not a hazard. A four-flash high-temperature shutdown is a real safety trip, the valve cutting the burner because the water got too hot, and it should not be reset over and over. A blue lockout is different again: it points at flammable vapors near the heater, an actual hazard you clear by ventilating and removing the fume source. The dangerous move is never the light. It is jumpering or bypassing a safety to force the burner to run through a warning.
Why does the red light keep coming back after I reset it?
A reset clears the fault memory, it does not fix the cause. If the same count returns after a clean reset, the condition is real and repeating. A two-flash that keeps returning usually means a genuinely weak pilot flame or a thermopile that has lost output, so the fix is cleaning the pilot and, if the millivolts still read low, replacing the thermopile. A four-flash that comes back on a flushed tank at a sane setpoint points at a drifting sensor or the valve itself. A five or seven that returns almost always means the gas control valve needs replacing. Chasing repeated resets on a high-temp or gas-valve code is the wrong move, because those are safety conditions, not glitches.
How do I reset a water heater with a red flashing light?
On a gas model, turn the gas control knob to OFF, wait three to five minutes for the valve and water to cool, then relight the pilot following the lighting steps printed on the burner door and turn the knob back to your setting. On a power-vent or electronic model you can cut power at the switch or breaker for the same few minutes. That clears a one-time fault. People go hunting for a red ECO reset button and get confused when a gas valve does not have one. The physical red button lives on electric water heaters behind the upper access panel; on a gas valve, the knob cycle is your reset. Reset once to confirm a repair worked, not as the repair itself.
How much does it cost to fix a red flashing light?
It ranges from almost free to a few hundred dollars depending on the count. A two-flash thermopile is the cheap end: the part is usually twenty to fifty dollars and it is homeowner-friendly work with a screwdriver and a wrench. A four-flash often costs nothing to fix if it is just a high setpoint or sediment you flush out. Five and seven flashes point at the gas control valve, which runs roughly one hundred fifty to three hundred dollars for the part and two hundred fifty to six hundred or more installed. Before buying a valve, check the rating label for the serial and warranty, because the gas control valve is a covered part on most gas heaters for several years, which can turn it into a labor-only bill.
Are the red-flash codes the same on every brand?
The color logic and the common counts overlap a lot, but they are not identical, so do not assume. The Honeywell and Robertshaw family of valves used on Rheem, Ruud, A.O. Smith, and State reads the same: two is thermopile, four is high temperature, five is sensor, seven is the gas valve. Bradford White is the big exception. Its ICON and Eco-Defender controls use a green light for normal and assign different meanings to the counts, with nine flashes signaling a tank leak and ten meaning insufficient combustion air. So once you have your count, confirm it against the chart printed on that heater's own burner door or in its manual, not against a generic table. If the two disagree, the label on the appliance in front of you wins.
