A single slow blink every three seconds on a State gas water heater is not a problem. It is the heartbeat that says the pilot is lit and the gas control valve is happy. The trouble starts when that light throws bursts of two, four, five, seven, or eight quick flashes with a pause between them. Each count is a specific message from the Honeywell gas control valve, and because State is built by A.O. Smith on the same valve family, the same chart works on A.O. Smith and American-branded heaters too. This page maps every flash count, shows how to count without getting fooled, walks the Honeywell reset, and routes each code to the part behind it, from a fifteen-dollar thermopile up to a full gas-valve replacement.
Normal versus a fault: read the rhythm first

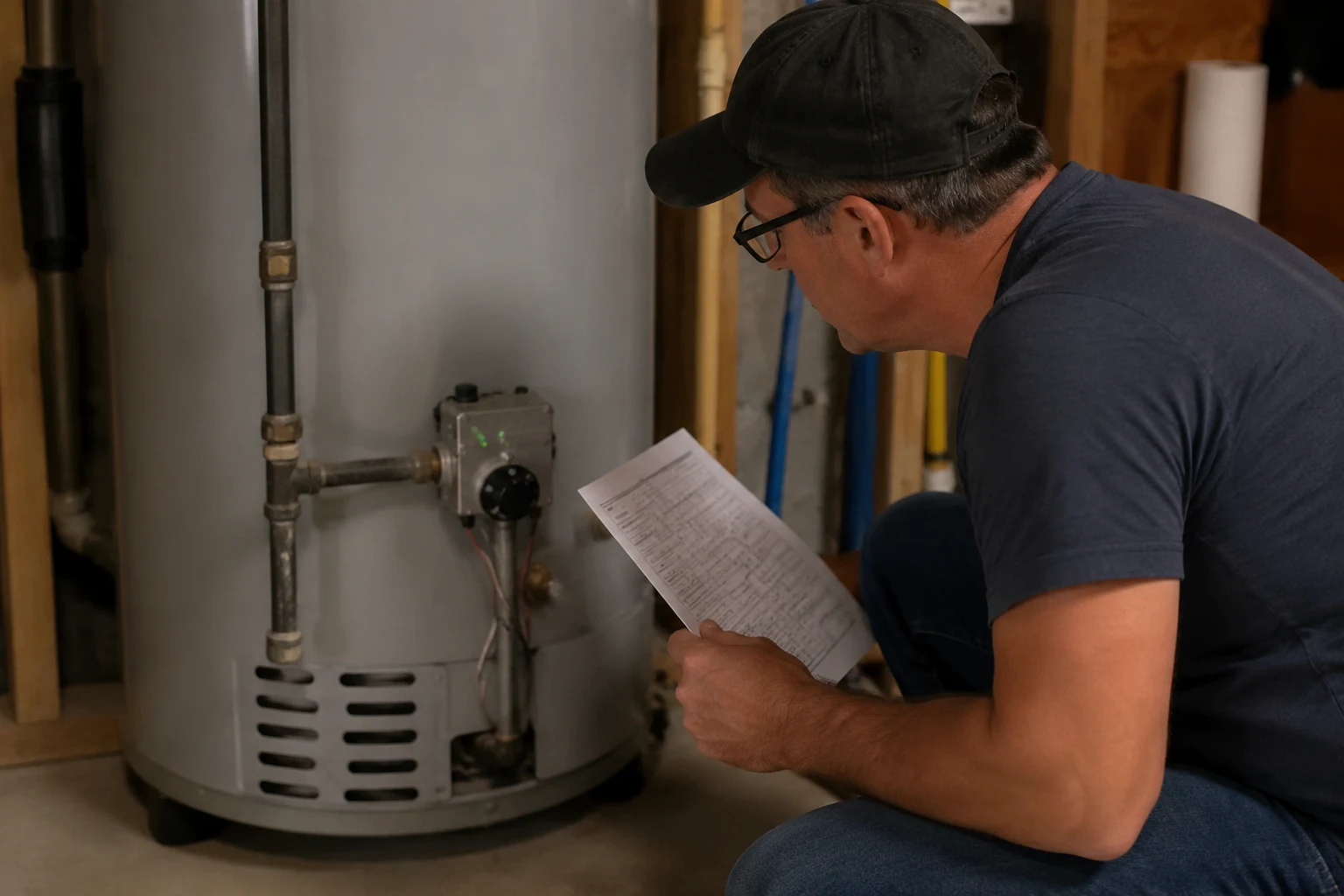

The status light sits low on the gas control valve, near the bottom front of the tank. It has two modes worth knowing. Normal is one flash, a long pause, one flash, a long pause, steady and unhurried, roughly one blink every three seconds. A fault is a rapid burst of two or more flashes, then a roughly three-second pause, then the identical burst again. If you keep counting and it is always one, the heater is telling you it is fine and your no-hot-water problem lives somewhere else, like the thermostat setting or a plumbing crossover. Only when you count two or more per burst do you have a code to chase.
Same valve family as A.O. Smith
State heaters are manufactured by A.O. Smith and use the Honeywell and A.O. Smith gas control valve family. That means this flash-code chart also applies to A.O. Smith and American-branded gas heaters built on the same valve. Always confirm the count against the chart printed on your own valve, since the less-common counts vary by model line.
One flash every three seconds is the heartbeat, not a warning. Two or more quick flashes in a burst is the actual code.State / A.O. Smith gas control status-light chart
How to count the flashes correctly
Miscounting is the most common way people end up replacing the wrong part. The flashes are quick and the pause is long, so it is easy to count a pause as a flash or to lose track across cycles. The three codes people confuse most are two versus three flashes at the cheap end and seven versus eight at the expensive end, and those are exactly the pairs where guessing wrong costs you the most. Work it slowly and confirm the number before you touch anything.

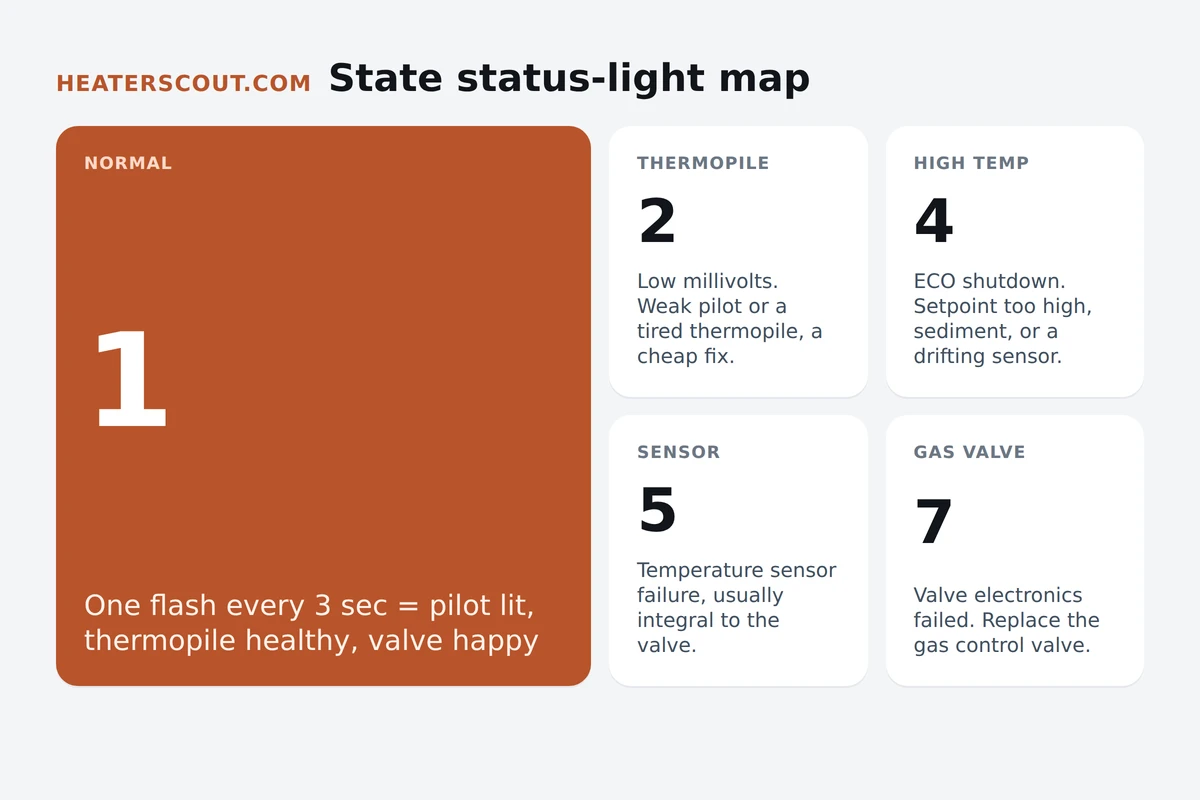

The full State flash-code map
This is the core of the page. The list below pulls the status-light codes off the State and A.O. Smith Honeywell gas-valve chart and routes each one to the part most likely responsible. Counts above one are faults. The three-flash and six-flash states are the ones that shift by model line, so treat those as a prompt to read your own valve label rather than a hard verdict.
Cheap-end codes (start here)
- 1 flash / 3 sec: Normal. Pilot lit, thermopile healthy, no fault. Nothing to fix.
- 2 flashes: Low thermopile voltage. Weak pilot flame, loose or dirty lead, or a worn thermopile. The friendliest, cheapest fix on the chart.
- 3 flashes: On some model lines a blocked flue or draft-pressure fault. Meaning varies, so read your valve's own label before acting.
- 4 flashes: High-temperature shutdown. The ECO tripped because water got too hot. Check the dial setting and flush sediment first.
Expensive-end codes (call a pro)
- 5 flashes: Temperature-sensor failure. The NTC sensor is integral to the valve on modern units, so this usually ends in a valve job.
- 6 flashes: Model-dependent, sometimes a tank or burner condition. Do not assume a cause; confirm against the valve label.
- 7 flashes: Gas control valve electronics failure. Replace the gas control valve assembly.
- 8 flashes: Flammable-vapor (FV) sensor lockout on FVIR models. Ventilate and find the fume source first, then reset or replace the sensor.
Two flashes is low thermopile voltage. The thermopile is the bundle of thermocouples the pilot flame heats to make the small DC voltage that powers the gas valve. When the pilot is weak or the thermopile is worn, the voltage sags below the valve's holding threshold and the burner will not fire. Check for a strong blue pilot flame that wraps the thermopile tip, clean and reseat the leads, and if a meter reads low under load, swap the thermopile, a part that runs fifteen to forty dollars.
Four flashes is a high-temperature shutdown. The valve sensed the water climbing past its high limit and cut the burner. The causes stack from free to expensive: a setpoint dialed toward the hot end, sediment trapping heat over the burner, a sensor drifting high, or a valve failing to shut the burner off. Back the dial to about 120 degrees and flush the tank before you suspect the valve. Five flashes is a temperature-sensor failure, and because that sensor is built into the gas control valve on modern State heaters, a genuine five-flash usually ends in a valve replacement.
Seven flashes is the valve reporting an internal electronics fault, and it almost always means replacing the gas control valve assembly. Eight flashes is the flammable-vapor sensor, a genuine safety lockout you address by ventilating and clearing fume sources first. Both are the codes where warranty matters most, because the valve and its sensor are covered parts on most State gas heaters for years.
Reset once, not repeatedly
Do not keep resetting a four-flash, seven-flash, or eight-flash code to force the burner back on. Four flashes is a real high-temperature trip, seven is a gas-valve fault, and eight is a flammable-vapor lockout, all safety conditions. Reset once to see if it was a one-time event. If the same count returns, stop and diagnose the cause. Never jumper or bypass a sensor to run through a warning.
How to read and reset it, step by step
The reset on a Honeywell dial valve is not a single button press, and people get it wrong because they expect one. There is no red ECO button on most gas State heaters the way there is on an electric model; the high-limit sensor is integral to the valve, so the dial sequence is the reset. Read the code first, then reset only if the fault warrants it.
Where the DIY line sits
Where you stop depends on the count. The two-flash thermopile job is squarely homeowner work: a screwdriver, a wrench, a multimeter, and a part under forty dollars. The four-flash code starts as homeowner work, backing off the temperature and flushing sediment, and only becomes a pro job if it returns on a clean tank at a sane setting. Five and seven flashes are the valve, and replacing a gas control valve means draining the tank and disconnecting gas, which is where most people bring in a licensed plumber. The valve part alone runs one hundred to three hundred dollars, and installed the total typically lands between one hundred fifty and five hundred fifty. Eight flashes starts with ventilation and fume removal, then escalates to a sensor replacement only if the lockout persists in a clean space. Before any valve or sensor purchase, check the warranty against the rating label, because a covered part turns a part-plus-labor bill into labor only.
One habit protects you across all of this: read the chart on your own valve. State, A.O. Smith, and American gas heaters share the Honeywell valve family, so the common counts, two, four, five, seven, and eight, read the same across brands. The three-flash and six-flash states are where model lines diverge, so count the flashes, then confirm the meaning against the label printed on that heater's own gas control valve. If a generic table and the appliance in front of you disagree, the appliance wins. Once you have your count and your reset, you know whether you are chasing a fifteen-dollar thermopile or budgeting for a valve.
Frequently asked
What does a blinking light on my State water heater mean?
The small status light low on the gas control valve is a diagnostic readout, and the number of quick flashes in each burst is the code. One flash every three seconds is the normal heartbeat: the pilot is lit and the valve sees no fault. Anything more than one flash per burst is a fault. Two flashes is low thermopile voltage, four is a high-temperature shutdown, five is a temperature-sensor failure, seven is a gas control valve electronics failure, and eight is the flammable-vapor sensor on FVIR models. The valve pauses about three seconds between bursts so you can count the flashes in each one. Watch one full cycle, count the flashes, and match the count to the chart printed on your valve or in this table. Because State heaters are built by A.O. Smith and use the same Honeywell gas-valve family, the same chart applies to A.O. Smith and American-branded units too.
How do I count the flashes on a State water heater?
Kneel where you can see the status light on the gas control valve near the bottom front of the tank, then watch it through at least two full cycles. Count the quick flashes in one burst, wait for the roughly three-second pause, and confirm you get the same count on the next burst. That count is the code. Do not count across the pause, and do not count the pause itself as a flash. A single slow flash every three seconds with no rapid burst is normal operation, not a fault. Rapid multi-flash bursts separated by pauses are the fault codes. Write the number down before you reset, because clearing the fault also clears the code you were trying to read.
How do I reset a State water heater with a Honeywell gas valve?
On a Honeywell dial-thermostat valve the reset sequence is specific: cut power to the valve for more than ten seconds, restore power, then within ten seconds rotate the temperature dial fully counterclockwise to fully clockwise six times, quickly. That clears a one-time lockout. On a knob-style gas model you can instead turn the gas control knob to OFF, wait three to five minutes for the valve and water to cool, then relight the pilot per the burner-door instructions. What a reset does not do is fix a cause. If the same flash count returns after a clean reset, the fault is real and repeating, and forcing more resets on a high-temperature or gas-valve code is the wrong move because those are safety conditions.
What does 7 flashes mean on a State water heater?
Seven flashes is a gas control valve electronics failure: the valve is reporting that its own internal electronics can no longer operate the burner safely. Unlike the two-flash thermopile code, seven flashes rarely clears with a reset or a cheap part. It almost always means the gas control valve assembly gets replaced. Before you buy one, pull the model and serial number off the rating label and check the warranty, because the gas control valve is a covered part on most State gas heaters for several years, which can turn a two-hundred-dollar part into a labor-only job. Because swapping a gas valve means draining the tank and disconnecting gas, seven flashes is the code where most homeowners call a licensed plumber rather than doing it themselves.
What does 8 flashes mean, and is it dangerous?
Eight flashes on an FVIR State heater points at the flammable-vapor sensor: the valve detected combustible fumes near the heater and locked the burner out, or the FV sensor itself failed. That lockout is a safety feature, not a nuisance. First look for the real cause: gasoline, paint thinner, or solvent stored too close to the heater, or a recent spill. Ventilate the space and remove the source before you touch the reset. On a genuine sensor fault the FV sensor sometimes needs hours in fresh air to recover, and if it keeps locking out on a clean, well-ventilated space the sensor itself is likely bad and needs replacing. Never jumper or bypass a flammable-vapor sensor to force the burner to run.
How much does it cost to fix a blinking State water heater?
It depends on the count. A two-flash thermopile is the cheap end: the part runs about fifteen to forty dollars and it is homeowner-friendly work. A four-flash high-temperature code often costs nothing but time, backing off the dial and flushing sediment. Five and seven flashes are the gas control valve. The valve part alone runs one hundred to three hundred dollars, and installed with a plumber's labor the total typically lands between one hundred fifty and five hundred fifty dollars. Always check the warranty on the rating label before buying a valve, because a covered valve turns a part-plus-labor bill into labor only.
Are State and A.O. Smith water heater flash codes the same?
Yes, for the most part. State is an A.O. Smith brand, and State, A.O. Smith, and American-branded gas heaters use the same Honeywell and A.O. Smith gas-valve family, so the chart reads the same: one flash normal, two thermopile, four high-temp, five sensor, seven gas valve, eight flammable-vapor sensor. What can differ is the exact wording on the valve label and the less-common three-flash and six-flash states, which vary by model line. Count the flashes, then confirm the meaning against the chart printed on that heater's own gas control valve. If the two disagree, trust the appliance in front of you.
