A single slow blink every three seconds on a Ruud gas water heater is not a problem, it is the heartbeat that says everything is fine. The trouble starts when that light throws bursts of two, four, five, or seven quick flashes with a pause between them. Ruud is Rheem's twin brand and both tanks run the same Rheem-built gas control valve, so the flash chart is identical to Rheem's, but the light sits in a Ruud-specific spot and Ruud prints its own legend on the control. This page maps every count, shows how to read them off your valve without getting fooled, and routes each code to the part most likely behind it.
Quick answer
On a Ruud gas water heater, count the flashes in one burst on the status light low on the gas control valve. One flash every three seconds is normal, the pilot is lit and the valve is healthy. Bursts of two or more are faults: 2 = low thermopile voltage, 4 = high-temperature shutdown, 5 = temperature sensor, 7 = gas control valve. A blue lockout is a separate flammable-vapor track. Because Ruud and Rheem share the same valve, the chart matches Rheem exactly. Reset once by cycling the gas knob to OFF for three to five minutes; if the count returns, chase the cause.
Ruud is Rheem's twin, so the chart is the same
Ruud and Rheem are the same manufacturer selling under two badges. The gas control valve bolted to the front of your Ruud tank, the part Ruud also calls the thermostat, is the same Rheem-built, Honeywell-style control you find on a Rheem, a Richmond, or a GE-branded gas heater. That matters because the status light logic lives in that valve, not in the brand sticker. So the red flash chart on a Ruud reads identically to a Rheem: one flash normal, two low thermopile, four high-temperature shutdown, five temperature sensor, seven gas control valve. Replacement gas valves and controls even ship from the same parts.ruud.com and parts.rheem.com catalogs. What is genuinely Ruud-specific is the trim: the badge, the exact wording printed on the control sticker, and where the model and serial numbers sit on the rating label.

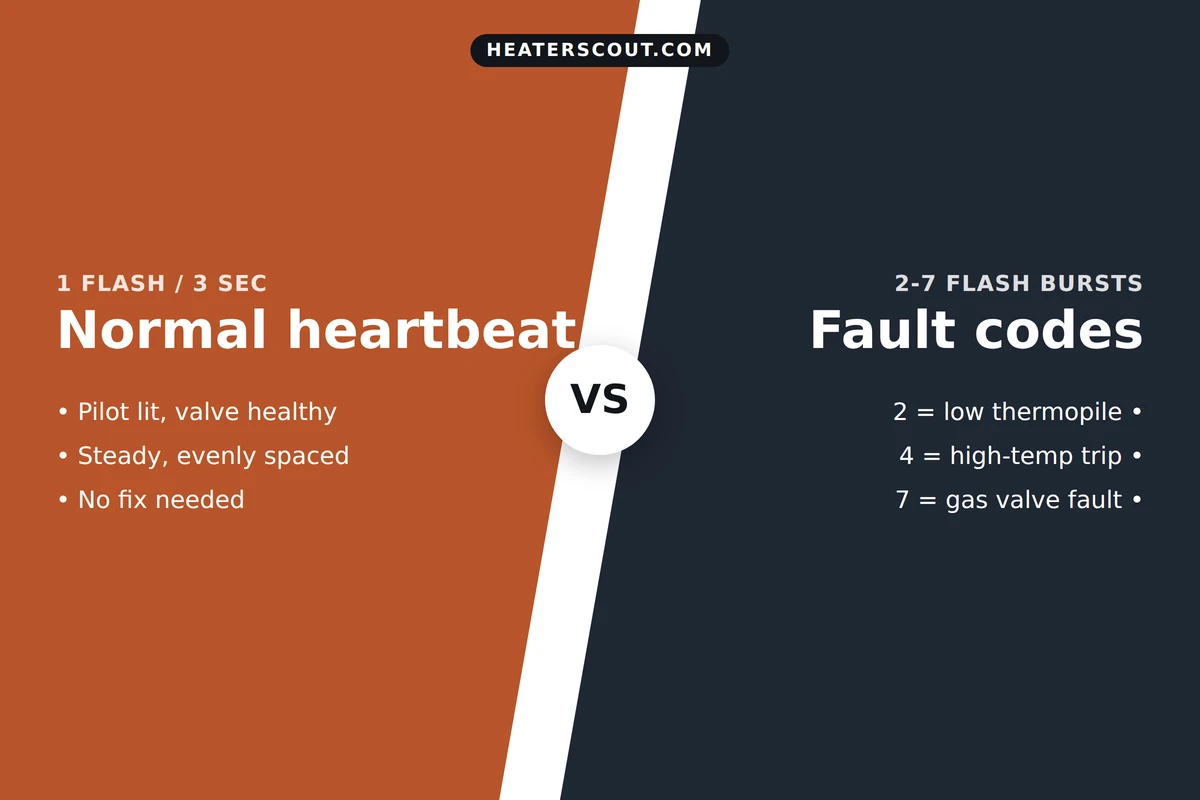

Normal versus a fault: read the rhythm first

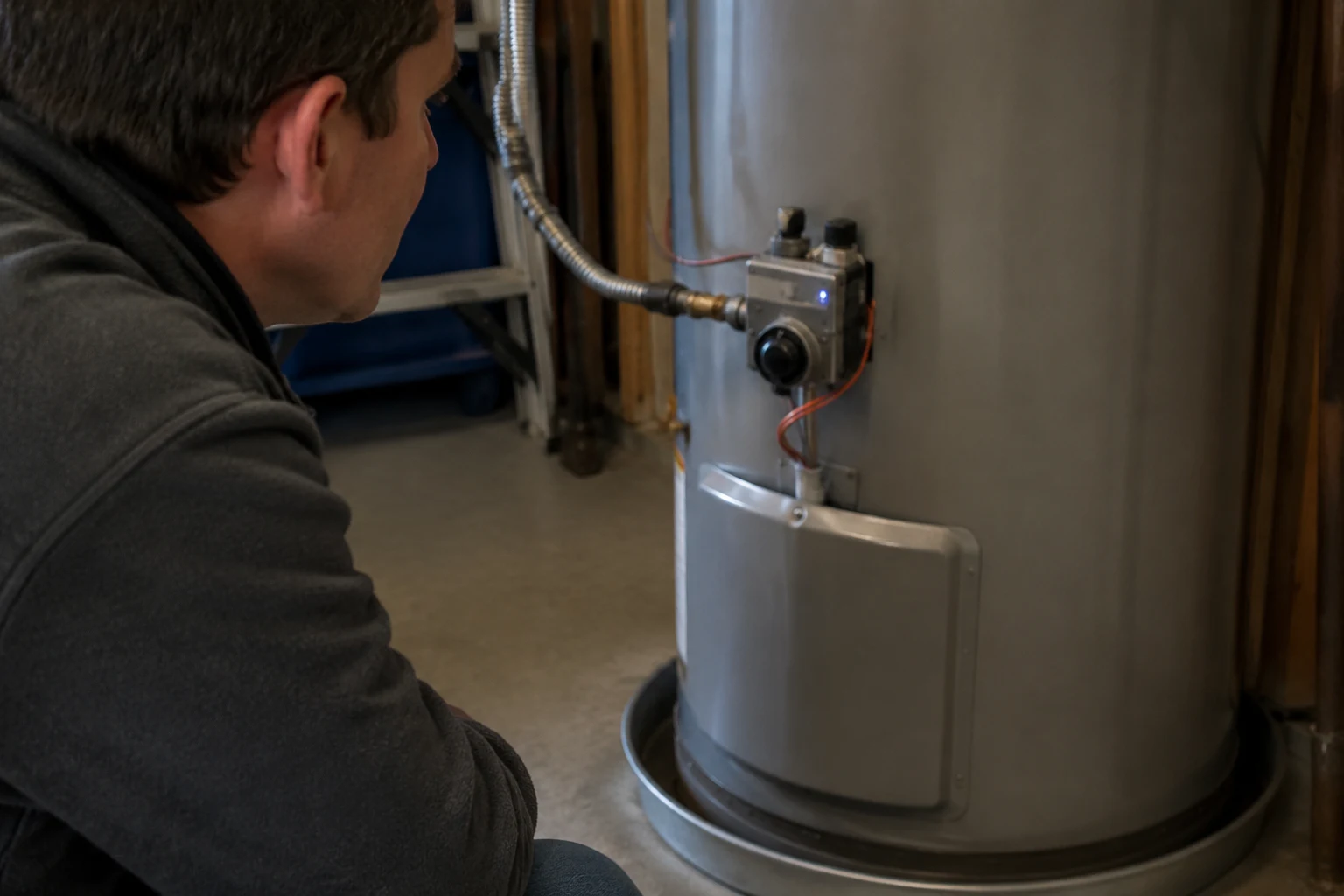

The status light sits on the front of the tank, low toward the bottom, right on the gas control valve next to the knob and the printed lighting instructions. It has two modes worth knowing. Normal is one flash, a long pause, one flash, a long pause, steady and unhurried, roughly one blink every three seconds. A fault is a rapid burst of two or more flashes, then a roughly three-second pause, then the identical burst again. If you count and it is always one, the heater is telling you it is fine, and a no-hot-water complaint is coming from somewhere else, a thermostat setting, a tripped breaker on a PowerVent model, or a plumbing crossover. Only when you count two or more per burst do you have a code to chase.
Which situation are you in?
Two flashes, weak thermopile
Pilot lit but the burner will not fire. Reseat the black connector on the valve, check for a strong blue pilot, and if it persists, replace the pilot/thermopile assembly. Homeowner work, part usually under fifty dollars.
Four flashes, high-temp trip
The valve cut the burner because the water got too hot. Back the dial to about 120 degrees and flush sediment first. If it returns on a clean tank at a sane setting, get a tech to check the sensor and valve.
Five or seven flashes, the valve
Five is a sensor that is built into the valve, seven is the valve itself reporting an internal fault. Both usually mean replacing the gas control valve. Check warranty first, then bring in a licensed plumber.
Blue lockout, flammable vapor
Not a valve code. The FV sensor smelled combustible fumes near the heater. Ventilate, remove the gasoline or solvent, then run the reset sequence on the control. Never bypass the sensor.
How to count the flashes correctly
Miscounting is the most common way people end up buying the wrong part. The flashes are quick and the pause is long, so it is easy to count a pause as a flash or lose track across cycles. Get a clear line of sight on the light, watch one full burst-and-pause without counting just to learn the rhythm, then count only the quick flashes inside one burst and stop at the long pause. Two quick flashes then a pause is a two. Four quick flashes then a pause is a four. Confirm the same count on the next burst, because real codes repeat identically. Write it down before you reset, because a power cycle or knob cycle clears the readout and you lose the very code you were reading. On red-and-blue models, note the color too.
The full Ruud flash-code map
This is the core of the page. Because Ruud runs the Rheem gas control valve, this table matches the Rheem chart exactly, and it matches the flash legend Ruud prints on the control sticker. Counts above one are faults. On flammable-vapor models the color adds a second track: red is the gas-valve diagnostics below, blue is the flammable-vapor lockout.
Key takeaways
- One flash every three seconds is normal: pilot lit, thermopile healthy, no action needed.
- Two flashes = low thermopile voltage. Reseat the black connector first, then replace the pilot/thermopile assembly. Under $50, DIY-friendly.
- Four flashes = high-temperature shutdown. Back the dial to 120 F and flush sediment before suspecting the sensor or valve.
- Five flashes = temperature sensor built into the valve; seven flashes = gas control valve fault. Both usually mean a valve replacement.
- A blue lockout is the flammable-vapor sensor, not a valve code. Ventilate and remove fumes before resetting.
- Ruud equals Rheem-built, so the chart is identical; still confirm against the legend on your own control sticker.
What each fault count actually is
Two flashes is low thermopile voltage. The thermopile is the little bundle of thermocouples the pilot flame heats to make the small DC voltage that powers the gas valve. When the pilot is weak or the thermopile is tired, the voltage sags below the valve's holding threshold and the burner will not fire. Start free: turn the gas control knob and the gas supply to OFF, pull the black connector off the valve, and reseat it tight to clear corrosion and make good contact. Then relight and watch. If a strong blue pilot still throws two flashes, the thermopile is spent, and on a Ruud the thermopile is integral to the pilot assembly, so you swap the whole assembly rather than a lone part.
Four flashes is a high-temperature shutdown. The valve sensed the water climbing past its high limit and cut the burner, the gas equivalent of an ECO tripping, and on some Ruud sheets it reads as the TCO or thermal cut-off. The causes stack from free to expensive: a setpoint dialed toward VERY HOT, sediment on the tank bottom trapping heat over the burner, a temperature sensor drifting high, or a valve failing to shut the burner off. Back the dial to about 120 degrees and flush the tank before you suspect the valve, because sediment and an aggressive setpoint cause far more four-flash calls than a bad valve does.
Five flashes is a temperature-sensor failure: the valve cannot trust its own reading of the water. On modern Ruud gas heaters that sensor is built into the gas control valve, so a genuine five-flash usually ends in a valve replacement rather than a separate sensor swap. Seven flashes is the valve itself reporting an internal fault, and it almost always means replacing the gas control valve assembly. Both are the codes where warranty matters most, because the valve is a covered part on most Ruud gas heaters for several years, so a covered valve turns a part-plus-labor bill into labor only.
The general reset, and where the DIY line sits
The soft reset is the same for most of these codes and it is worth doing exactly once before you spend money. On a gas Ruud, turn the gas control knob to OFF, wait three to five minutes for the valve and water to cool, then relight the pilot per the control's printed instructions and return the knob to your setting. On a PowerVent or electronic model, cutting power at the switch or breaker for the same few minutes does the same thing. People go looking for a red ECO reset button and get confused when a gas Ruud does not have one; on gas models the high-temperature sensor is integral to the valve, so the knob cycle is the reset. Electric Ruud models are the ones with the physical red button behind the upper access panel.
Where you stop depends on the count, and this is the honest DIY line. The two-flash thermopile job is squarely homeowner work: a screwdriver, a connector reseat, a multimeter, and a cheap pilot assembly. The four-flash code starts as homeowner work, backing off the temperature and flushing sediment, and only becomes a pro job if it returns on a clean tank at a sane setting. Five and seven flashes are the valve, and replacing a gas control valve means draining the tank and disconnecting gas, which is where most people bring in a licensed plumber. Before any valve purchase, check the warranty against the rating label.
- Watch two full cycles and confirm the same count before touching anything.
- Write the flash count down, plus the color on red-and-blue models, before you reset.
- For 2 flashes: gas OFF, reseat the black connector, check the pilot flame, then the thermopile assembly.
- For 4 flashes: set the dial to about 120 F and flush sediment before suspecting the valve.
- For 5 or 7 flashes: pull the model and serial off the rating label and check the warranty first.
- For a blue lockout: ventilate, remove any gasoline or solvent, then run the control's reset sequence.
- Never jumper or bypass a sensor to force the burner through a warning.
Ruud-specific notes: labels, PowerVent, and the blue track
Three things trip Ruud owners up. First, the label wording. Ruud calls the gas control valve the thermostat on some stickers, and the flash legend printed on that sticker is the authority for your exact unit, so read it before trusting any generic table, including this one. Second, PowerVent and electronic models. These add a small display or LED and can throw codes a standard gas tank never shows, like a blinking 88 for a control or temperature-sensor fault, so on a PowerVent match the readout to that model's own manual rather than the basic gas-valve chart.
Third, the blue track. On flammable-vapor-resistant Ruud models a blue light going into lockout is not a valve fault, it is the flammable-vapor sensor detecting combustible fumes near the heater. The FV sensor usually sits beneath the jacket door near the burner, and the reset is a specific knob or button sequence on the control. Ventilate the space and remove the gasoline, paint thinner, or solvent before you reset, and never bypass the sensor to run through it. From here, each fault count has its own path to walk, so once you have a confirmed count and, on a blue model, a confirmed color, follow it to the fix that matches yours.
Frequently asked
What does a blinking light on my Ruud water heater mean?
The small status light low on the front of the tank, right on the gas control valve, is a diagnostic readout, and the number of flashes in each burst is the code. One flash every three seconds is normal: the pilot is lit and the valve is happy. Anything more is a fault. Two flashes is low thermopile voltage, four is a high-temperature shutdown, five is a temperature-sensor failure, and seven is a gas control valve fault. The valve pauses about three seconds between bursts so you can count each one. Ruud prints a flash legend right on the control sticker, so you can match your count to the meaning without a manual. Count first, then decide, do not reset blindly and lose the code you were trying to read.
Where is the status light on a Ruud water heater?
On a standard Ruud gas tank it sits on the gas control valve, which Ruud also calls the thermostat, mounted on the front of the tank low toward the bottom. The light is small, usually green or red, next to the gas control knob and the printed lighting instructions. On a Ruud PowerVent or electronic model the readout can be a small display or LED near the same spot, and those units add codes like a blinking 88 for a control or sensor fault. Kneel down and use a flashlight, because the light is easy to miss in a dim utility closet and a reflection off the jacket can blur two fast flashes into one.
Are Ruud and Rheem flash codes the same?
Yes. Ruud is Rheem's twin brand and the two share the same Rheem-built gas control valves, so the red status-light chart reads identically on both: one flash normal, two low thermopile, four high-temperature shutdown, five temperature sensor, seven gas control valve. The physical valve on a Ruud tank is the same family of Honeywell-style control that Rheem, Richmond, and several other brands use, which is why the counting method and the fixes carry straight across. The only differences you will notice between a Ruud and a Rheem are cosmetic: the badge on the jacket, the exact wording on the control sticker, and where the model and serial numbers print on the rating label.
How do I reset my Ruud water heater?
For a soft reset on a gas Ruud, turn the gas control knob to OFF, wait three to five minutes for the valve and water to cool, then relight the pilot following the lighting instructions on the control and turn the knob back to your setting. On a PowerVent or electronic model, cutting power at the switch or breaker for the same few minutes does the same job. That clears a one-time fault. It does not fix a cause. If the same flash count returns after a clean reset, the fault is real and repeating, and forcing more resets on a four-flash high-temperature code or a seven-flash gas-valve code is the wrong move because those are safety conditions. There is no separate red ECO button on a gas Ruud the way there is on an electric model; the knob cycle is your reset.
What does 2 flashes mean on a Ruud water heater and can I fix it myself?
Two flashes means the pilot is lit but the gas control valve is not seeing enough millivolts from the thermopile to stay open, so the burner will not fire. It is the friendliest code on the chart and mostly homeowner work. Turn the gas control knob to OFF and the gas supply valve to OFF, then pull the black wiring connector off the gas valve and reseat it firmly, because a loose or corroded connector is a common and free cause. Check the pilot for a strong blue flame that wraps the thermopile tip. If a reseated connector and a healthy pilot still throw two flashes, replace the thermopile. On Ruud the thermopile comes as part of the pilot assembly, so you replace the whole assembly, a part that usually runs well under fifty dollars from parts.ruud.com.
What does 7 flashes mean and how much does it cost to fix?
Seven flashes is a gas control valve fault: the valve reports an internal failure and that it can no longer run safely. Unlike two or four flashes, seven rarely clears with a reset or a cheap part, so it almost always means replacing the gas control valve assembly. A Ruud gas valve part runs roughly one hundred fifty to five hundred fifty dollars depending on the model, and with labor a plumber's job averages around three hundred fifty dollars. Before you buy, pull the model and serial off the rating label and check the warranty, because the gas control valve is a covered part on most Ruud gas heaters for several years, which turns a valve purchase into a labor-only bill. Because the swap means draining the tank and disconnecting gas, most homeowners hand seven flashes to a licensed plumber.
Why is my Ruud water heater light blinking blue?
Blue is a different track from the red gas-valve codes. On flammable-vapor-resistant Ruud models the status light or a separate FV sensor going blue and locking out means the flammable-vapor sensor detected combustible fumes near the heater, gasoline, paint thinner, or solvent stored too close. That is a hazard, not a valve fault. Ventilate the space, find and remove the source, and only then reset. The FV sensor on a Ruud usually sits beneath the jacket door near the burner, and the reset is a specific knob or button sequence printed on the control. Do not chase the red flash chart for a blue lockout, and never bypass the sensor to force the burner on.
Why does the same flash code keep coming back?
A code that returns after a clean reset is telling you the cause is still there. Two flashes that keeps returning points at a genuinely weak thermopile or a pilot that will not hold a strong flame, often a dirty or partly blocked pilot orifice. Four flashes that keeps returning usually means sediment on the tank bottom trapping heat over the burner, a setpoint left too high, or a temperature sensor drifting, and occasionally a valve on its way out. Seven flashes that returns is a valve that needs replacing, full stop. The mistake is treating the reset as the repair. Reset once to confirm a fix worked, and if the same count comes back, stop resetting and chase the actual cause.
